• High-precision flow meters

• Automated pressure control

• Heavy-duty steel frame

• Integrated touchscreen display

Supply Port

• Digital Supply Pressure Gauge (.25% Accuracy)

• Supply Throttle

• Supply Pressure Adjustment (0-200 PSI)

• Digital Oil Temperature Gauge

• Automatic Supply Pressure Control

• Precise Supply Pressure Regulator

Case Drain Port

• Load Valve

• By-Pass Dump Valve

• Digital Pressure Gauge (.25% Accuracy - 0-600 PSI)

• Digital Oil Temperature Gauge

• Digital Flow Meter (.4 - 7 GPM - 1% Accuracy)

• Case Drain Sump Tank Allows Pressure Adjustment from 0-200 PSI

Pressure Port

• Load Valve

• By-Pass Dump Valve

• Digital Pressure Gauge (.25% Accuracy - 0-5000 PSI)

• Digital Oil Temperature Gauge

• Digital High Pressure Flow Meter (1% Accuracy)

Super Clean Filtration

• Pump Outlet Filter

• Supply Port Filter

• Loop Pump Filter with LED Filter Condition Warning Indicator

• Supply Tank Desiccant Filter

• Sump Tank Filter

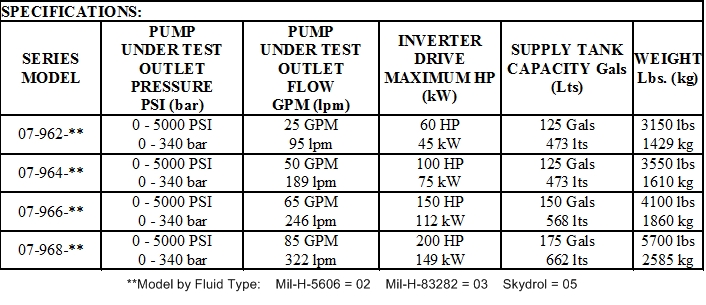

• The Pump Test Stand (PTS) is Designed for Testing All Fixed and Variable Displacement Pumps

• Precise Digital Pressure Gauges

• High Accuracy Digital Flow Meters

• Stainless Steel Pressure Supply Tank (175 Gallons)

• 5000 PSI Working Pressure

• All Gauges Enclosed in Skydrol Proof Enclosure

• Stainless Steel Construction

• Heavy Duty Work Sink with Grating

• Sink Drain Pump with Filter

• Loop Pump for Reservoir, Continuously Filters and Cools Fluid

• High Capacity Loop Pump Filter and Pump Outlet Filter

• LED Warning Indicators for Loop Filter, Supply Tank Low Level, and High Fluid Temperature

• Dual, Extra Capacity Water to Oil Coolers

• Automatic Oil Temp Control

• Guaranteed No Leaks

• Safety Pan Completely Covers Bottom

• Current Pressure Gauge and Flow Meter

• Certificates of Calibration

Digital Readouts

• Panel Mounted Tachometer RPM

• Motor Over Voltage

• Motor Over Current

• Motor Over Temperature

• Ground Fault

• Output Phase Supervision

• Encoder Fault



Four Digital Pressure Gauges (.25% Accuracy)

• Supply Tank Pressure (0 - 200 PSI)

• Supply Port Pressure (0 - 200 PSI)

• Pump Outlet Pressure (0 - 5000 PSI)

• Case Drain Pressure (0 - 200 PSI)

Safety Features

• Ergonomically Located Emergency Stop Switch

• Safety Over Pressure Relief Valve

• Safety Drip Pan Completely Covers Bottom to Ensure Clean Floors

• All Electrical Components Installed in NEMA 4, 12 Enclosure

• All Gauges are Fully Enclosed in NEMA 4, 12 Enclosure with a Clear Front Safety Glass Cover

• Operational LED Warning Indicator Lights

• Dual Heavy Duty Floor Locks to Ensure Stability

• Optional Safety Glass Sliding Doors for Work Sink

• Supply Tank Over Pressure Relief Valve
