Stainless steel construction
Precise digital pressure gauges
100% duty cycle operation
Temperature monitoring system
General Features
Performance Assured 100% Duty Cycle
Will Deliver Maximum Flow @ Maximum Pressure
Dual System for Operational Checks of Aircraft with Primary and Secondary Hydraulic Systems
Dependable Perkins Diesel Engine
Weather Proof Cabinet with Hose Storage
Heavy Duty Frame with Puncture Proof Tires
Complete with Spare Components for Maintenance
Instrumentation
Dual Variable Area Flow Meters (4% Accuracy)
Dual Test Quality Pressure Gauges (1% Accuracy)
Dual Scale Pyrometer / Oil Temperature Gauge (2% Accuracy)
Test Quality Boost Pump Pressure Gauge
Functions
Boost pump for closed loop circuit
Open loop configuration for filling and draining of aircraft reservoir
Dual system with dual inlets and outlets with shut-off valves
Hydraulic System
Axial piston pump variable stroke with proportional control of flow and pressure
Fluid Sample Port
Pressure filter 3 micron absolute, low pressure filter 10 micron absolute with electric clogged condition indicator

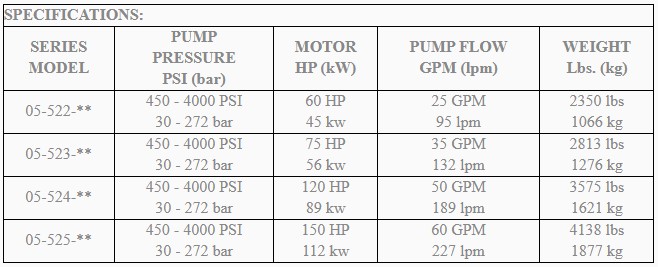

Stainless steel reservoir capacity 150% of maximum pump output (refer to model number)
Pressure and return hoses 35 ft. long
High volume hand pump with filter and pressure gauge for servicing aircraft's reservoir
Control Panel
Contains all control gauges and indicators for hydraulic system
Accessible through hinged panel in a dust and water-proof housing
Illuminated to enable easy operation at night
Graphic layout for ease of operation
Protective cover for control panel
Structure
Strong and heavy-duty chassis
Heavy-duty frame with dip tray
Hydraulic and electrical components completely isolated from each other
Canopy made of steel, spray painted
Maximum towing speed 16 km/hour, parking brake on front wheel by tow in upright position
Tie down / lifting points
Fork-lift pick-up points
Accessories
Bottle samplers for laboratory check of contamination
All models incorporate inline sensor for connection with hydraulic contamination monitoring
One set of hydraulic pressure and return lines, 35 ft. long
One 45 Watt swiveling spotlight
One CO2 fire extinguisher mounted on the outside of the unit
One tool kit for routine scheduled/unscheduled maintenance
Switches Gauges Indicators
Analog pressure gauge 0-4000 PSI in pressure line and 0-200 PSI in return line (1% Accuracy)
Analog readout for actual flow
Flow setting by flow control valve
Pressure setting by pressure relief valve
Temperature shut down switch
Emergency shut-down button
Low pressure filter clogged condition indicator
Switch for low and high level and return pressure gauge
